Understanding Stainless Steel Microstructures
The performance of stainless steel round bars is fundamentally dictated by their crystal structures and alloy compositions.
Stainless steel rod is an alloy steel with a smooth surface, high weldability, corrosion resistance, polishability, heat resistance, and long-term durability. It is widely used in various industries and is an important material in modern industry. Depending on the metallurgical structure state at room temperature, stainless steel is classified into four primary categories:
1. Austenitic Stainless Steel
Characterized by an austenitic crystal structure at room temperature. This steel typically contains Cr ≈18%, Ni ≈8%-25%, and C ≈0.1%. Austenitic grades (such as 304 and 316L) exhibit high toughness, excellent ductility, and superior non-magnetic properties, though they have lower raw yield strength compared to martensitic grades.
2. Martensitic Stainless Steel
A specialized class of steel whose mechanical properties can be precisely adjusted via heat treatment (quenching and tempering). Martensitic stainless steels (e.g., 410, 420) feature a body-centered tetragonal structure, offering high hardness and strength at the expense of lower corrosion resistance.
3. Duplex Stainless Steel
Engineered to have a dual-phase microstructure consisting of austenite and ferrite in roughly equal proportions (approx. 50/50). When carbon content is kept low, chromium ranges from 18% to 28% and nickel from 3% to 10%. Alloyed with Mo, Cu, Si, Nb, Ti, and N, duplex steel combines the high stress-corrosion cracking resistance of ferritics with the toughness of austenitics.
4. Ferritic Stainless Steel
Containing 15% to 30% chromium, this group features a body-centered cubic crystal structure. Typically nickel-free (or containing minimal trace elements), ferritics are sometimes stabilized with Mo, Ti, or Nb. They offer excellent thermal conductivity, low thermal expansion coefficients, good oxidation resistance, and superior stress corrosion cracking resistance.
201 / 304 / 316L Stainless Steel Round Bars Comparison
Analyze key physical properties, processing characteristics, and market pricing ratios to optimize project budgets.
| Comparison Parameter | Grade 201 Round Bar | Grade 304 Round Bar | Grade 316L Round Bar |
|---|---|---|---|
| Market Price Range | $1,300 - $1,600 / Ton | $2,200 - $2,600 / Ton | $3,200 - $3,800 / Ton |
| Price Ratio (Relative) | Base (1.0x) | ~1.6x - 1.8x | ~2.3x - 2.5x |
| Rust & Corrosion Resistance | Low (Indoor / Dry use only) | Medium-High (Atmospheric / Standard) | Excellent (Marine / Acid / Chloride) |
| Cutting & Drilling Cost | High (Work hardens quickly) | Moderate (Standard tooling) | Moderate-Low (Easiest to machine of the three) |
| Bending & Forming Difficulty | Hard (High springback, high carbon) | Moderate (Good ductility) | Easy (Highly ductile, low carbon) |
| Density / Weight | 7.86 g/cm³ | 7.93 g/cm³ | 7.98 g/cm³ |
| Tensile Strength (MPa) | ≥ 515 MPa | ≥ 505 MPa | ≥ 485 MPa |
| Typical Lifespan | 1 - 5 Years (Environment dependent) | 10 - 25 Years (Standard environments) | 50+ Years (Highly corrosive environments) |
Product Specifications & Commercial Terms
Shandong Bamaoxing Steel Co., Ltd. provides global-standard stainless steel round, square, flat, and hexagonal bars.
| Parameter Type | Product / Form Factor | Dimensional Specifications & Standards |
|---|---|---|
| Specification Range | Round Bar | Diameter: 3mm ~ 800mm |
| Angle Bar | Size: 3mm*20mm*20mm ~ 12mm*100mm*100mm | |
| Square Bar | Size: 4mm*4mm ~ 100mm*100mm | |
| Flat Bar (Thickness) | Thickness: 2mm ~ 100mm | |
| Flat Bar (Width) | Width: 10mm ~ 500mm | |
| Hexagonal Bar | Size: 2mm ~ 100mm | |
| Available Materials | 304, 304L, 309S, 310S, 316, 316L, 316Ti, 317, 317L, 321, 347H, 201, 202, 405, 409, 410, 420, 430, etc. | |
| Surface Finishes | Pickled, Black, Bright, Polished, Sandblasted, etc. | |
| Quality Assurance | Mill Test Certificate (MTC) supplied with every shipment. Third-party inspections (SGS, BV) welcomed. | |
| Payment Terms | L/C, T/T (30% deposit, balance against B/L), or negotiable terms. | |
| Inventory Level | Sufficient stock maintained for standard sizes of 201, 304, and 316L round bars. | |
Industrial Application Cases & Material Selection
Choosing the right grade of stainless steel round bar based on environment, mechanical stress, and budget constraints.
Case 1: Food Processing & Medical Devices
Recommended Grade: 304 Stainless Steel Round Bar
Scenario: Conveyor shafts, mixing paddles, and sanitary valves in food processing plants.
Why it fits: Grade 304 contains 18% chromium and 8% nickel, providing high resistance to organic acids and sanitizing chemicals. It prevents contamination and is easy to clean, meeting strict FDA hygiene regulations.
Case 2: Marine Engineering & Chemical Processing
Recommended Grade: 316L Stainless Steel Round Bar
Scenario: Propeller shafts, offshore oil rig fittings, and chemical reactor agitators.
Why it fits: The addition of 2-3% Molybdenum in 316L prevents chloride pitting and crevice corrosion in seawater and acidic environments. The low carbon content ('L') prevents carbide precipitation during welding.
Case 3: Architectural Decoration & Trim
Recommended Grade: 201 Stainless Steel Round Bar
Scenario: Indoor handrails, decorative framing, display racks, and furniture components.
Why it fits: Grade 201 is a cost-effective alternative to 304 for indoor applications. It offers higher yield strength and a bright finish. It is ideal for dry, low-humidity environments where direct moisture exposure is minimal.
Case 4: Heavy Machinery & Precision Components
Recommended Grade: Duplex or Martensitic Round Bar (e.g., 2205 / 420)
Scenario: Heavy hydraulic cylinders, high-torque pump shafts, and fasteners.
Why it fits: These grades provide high tensile strength and wear resistance. They handle high torsional loads while maintaining structural integrity under heavy duty cycles.

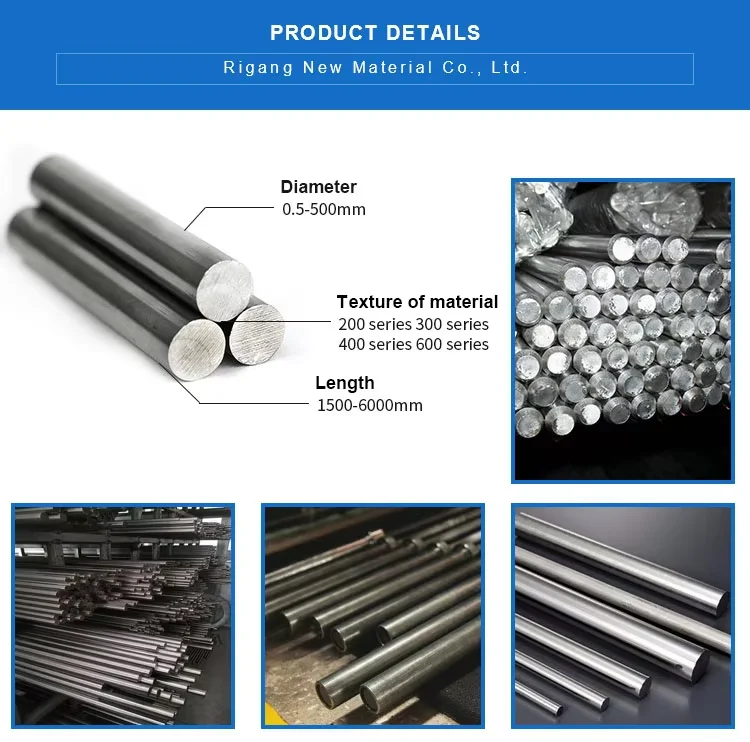

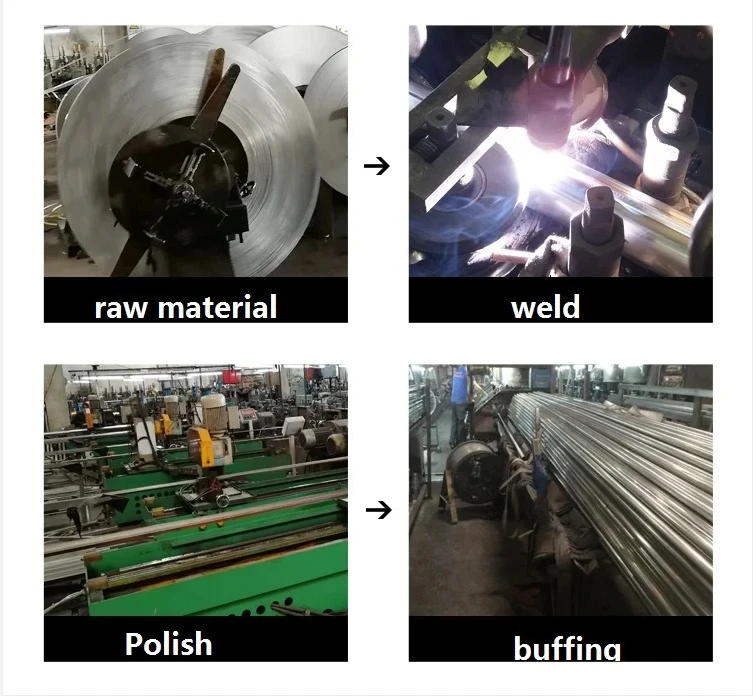

Product Gallery & Factory Stock
Direct view of our high-quality stainless steel round bars and processing facilities.
Frequently Asked Questions (FAQ)
Get answers to common questions about sourcing, processing, and shipping stainless steel round bars.
Get a Customized Stainless Steel Round Bar Quote
Need advice on material selection, pricing, or processing costs? Submit your project details below. The technical sales team at Shandong Bamaoxing Steel Co., Ltd. will contact you within 24 hours with a detailed quote.
Shandong Bamaoxing Steel Co., Ltd. is a one-stop supplier of premium quality stainless steel round bars, plates, and pipes.
Visit our official website at bamaoxingsteel.com for more product information.
